VertexMath · MHF4U · Free worksheet

Trigonometric Identities Review

Try each problem first. You don’t need to finish everything.

Core path ~55 min Full sheet ~1 h 50 min

Recommended: K1–K5, then one A and one T problem

K = Knowledge & Understanding · A = Application · T = Thinking · Boss = Challenge

vertexmath.ca Hints, answers & more worksheets

Quick reference

Reciprocal and quotient: $\csc x=\dfrac{1}{\sin x}$ , $\sec x=\dfrac{1}{\cos x}$ , $\cot x=\dfrac{\cos x}{\sin x}$ , $\tan x=\dfrac{\sin x}{\cos x}$ . Cofunction: $\sin\left(\frac{\pi}{2}-x\right)=\cos x$ .
Pythagorean: $\sin^2x+\cos^2x=1$ and $1+\tan^2x=\sec^2x$ . A square root gives $\pm$ : the quadrant picks the sign.
Compound angle: $\sin(A\pm B)=\sin A\cos B\pm\cos A\sin B$ , $\cos(A\pm B)=\cos A\cos B\mp\sin A\sin B$ , $\tan(A\pm B)=\dfrac{\tan A\pm\tan B}{1\mp\tan A\tan B}$ .
Double angle: $\sin 2A=2\sin A\cos A$ , $\cos 2A=\cos^2A-\sin^2A=1-2\sin^2A=2\cos^2A-1$ , $\tan 2A=\dfrac{2\tan A}{1-\tan^2A}$ .
Proofs: work on one side at a time, never on the equation you are proving. And $\cos(A-B)\ne\cos A-\cos B$ , $\sin 2A\ne 2\sin A$ .

Show your work on separate paper. Show your work in the dot-grid space.

Core Skills (K)

Reciprocal & Quotient · Pythagorean · Compound Angle · Double Angle · Equations

K1 Reciprocal, Quotient & Cofunction

Simplify each expression to a single trig ratio or a constant.

a)
$\dfrac{\sec x}{\csc x}$
b)
$\cot x\,\sec x\,\sin x$
c)
$\tan\left(\dfrac{\pi}{2}-x\right)\sin x$

Stuck? Peek at a hint

Rewrite every ratio in terms of $\sin x$ and $\cos x$ before cancelling. For (c), start with a cofunction identity.

K2 Pythagorean Identity

For (a) and (b), $\cos\theta=-\dfrac{7}{25}$ and $\pi<\theta<\dfrac{3\pi}{2}$ .

a)
Determine $\sin\theta$ exactly.
b)
Determine $\tan\theta$ and $\csc\theta$ exactly.
c)
Simplify $\dfrac{\sec^2x-1}{\sec^2x}$ to a single term.

Stuck? Peek at a hint

Use $\sin^2\theta=1-\cos^2\theta$ , then let the quadrant choose the sign. For (c), replace $\sec^2x-1$ with one term.

K3 Compound Angles

Angles $A$ and $B$ have the exact values in the table.

$\text{angle}$	$A$	$B$
$\sin$	$\dfrac{8}{17}$	$\dfrac{3}{5}$
$\cos$	$\dfrac{15}{17}$	$-\dfrac{4}{5}$

a)
Determine $\sin(A+B)$ exactly.
b)
Determine $\cos(A-B)$ exactly.
c)
Evaluate $\tan\dfrac{5\pi}{12}$ exactly.

Stuck? Peek at a hint

Write the formula first, then substitute each value in brackets. For (c), write $\frac{5\pi}{12}$ as a sum of two special angles.

K4 Double Angles

For (a) and (b), $\sin A=\dfrac{2}{3}$ and $\dfrac{\pi}{2}<A<\pi$ .

a)
Determine $\sin 2A$ exactly.
b)
Determine $\cos 2A$ and $\tan 2A$ exactly.
c)
Write each as a single trig ratio, then evaluate exactly: $2\cos^2\dfrac{\pi}{8}-1$ and $\dfrac{2\tan 15^\circ}{1-\tan^2 15^\circ}$ .

Stuck? Peek at a hint

Find $\cos A$ first; the quadrant sets its sign. For (c), match each expression to one form of a double angle formula.

K5 Equations with Identities

Solve for $0\le x\le 2\pi$ . Give exact values.

a)
$2\sin^2x+3\cos x-3=0$
b)
$\sin 2x=\cos x$
c)
$\cos 2x=3\sin x-1$

Stuck? Peek at a hint

Use an identity to write each equation in a single trig ratio of $x$ . Then move every term to one side and factor.

Real World (A)

Compound Angles · Double Angles · Equations in Context

A1 Mural View

A mural on a Toronto building starts 3 m above your eye level and ends 8 m above it. You stand $x$ metres from the wall. The angles of elevation to the bottom and top of the mural are $\alpha$ and $\beta$ , so the mural fills an angle $\theta=\beta-\alpha$ of your view.

a)
Show that $\tan\theta=\dfrac{5x}{x^2+24}$ .
b)
Find the two distances where $\tan\theta=\frac{1}{2}$ , and the angle $\theta$ to the nearest tenth of a degree.
c)
A photographer wants the mural to fill a $45^\circ$ angle of view. How far from the wall should they stand?

Stuck? Peek at a hint

Write $\tan\alpha$ and $\tan\beta$ in terms of $x$ , then use the formula for $\tan(\beta-\alpha)$ .

A2 Ladder Check

A 6 m ladder leans against a vertical wall and makes an angle $\theta$ with the level ground, $0^\circ<\theta<90^\circ$ . The height of its top plus the distance of its foot from the wall is 8 m.

a)
Show that $\sin 2\theta=\dfrac{7}{9}$ .
b)
Find both possible angles $\theta$ to the nearest tenth of a degree, and the height of the top of the ladder for each, to the nearest centimetre.
c)
A safety guideline says a ladder should make an angle between $70^\circ$ and $80^\circ$ with the ground. Can this ladder meet the 8 m condition safely? Find the exact value of height plus distance at $75^\circ$ .

Stuck? Peek at a hint

Write the height and the distance in terms of $\theta$ , then square both sides of the equation.

A3 Indoor Kick

A soccer player kicks a ball from the ground at 20 m/s, at an angle $\theta$ above the horizontal. Ignoring air resistance, it lands $d(\theta)=\dfrac{800\sin\theta\cos\theta}{9.8}$ metres away on level ground.

a)
Write $d(\theta)$ using a single sine function. Find the angle that gives the longest kick, and that distance to the nearest tenth of a metre.
b)
Find both angles that land the ball 30 m away, to the nearest tenth of a degree.
c)
The game is in an indoor fieldhouse with a 15 m roof. The ball's maximum height is $h=\dfrac{400\sin^2\theta}{19.6}$ metres. Which angle from (b) can the player use?

Stuck? Peek at a hint

Use $2\sin\theta\cos\theta=\sin 2\theta$ . In (b), $2\theta$ can be any angle from $0^\circ$ to $180^\circ$ .

Think It Through (T)

Error Analysis · Building Identities

T1 Spot the Flaw

A student claims that $\sin x-\cos x=\sqrt{1-\sin 2x}$ is an identity:
"Square both sides: $\sin^2x-2\sin x\cos x+\cos^2x=1-\sin 2x$ . The left side equals $1-\sin 2x$ , the same as the right side. Therefore the identity is true."
The graph shows $y=\sin x-\cos x$ (LS) and $y=\sqrt{1-\sin 2x}$ (RS) for $0\le x\le2\pi$ . Vertical grid lines are $\frac{\pi}{2}$ apart and horizontal grid lines are $0.5$ apart.

a)
Evaluate both sides at $x=0$ . What does this show about the claim?
b)
State the interval in $[0,2\pi]$ on which the two sides are equal. Give exact endpoints.
c)
Identify the flaw in the student's method. Then write the identity that the squaring step does prove.

Stuck? Peek at a hint

One value of $x$ where the sides differ disproves an identity. For (b), find where $\sin x-\cos x\ge0$ .

T2 Build It Backwards

Find the constants. Each identity must hold for every real number $x$ .

a)
Find $a$ and $b$ such that $\sin^2x=a+b\cos 2x$ .
b)
Find $R>0$ and $0<\alpha<\dfrac{\pi}{2}$ such that $\sin x+\sqrt{3}\cos x=R\sin(x+\alpha)$ .
c)
A student says the largest value of $\sin x+\sqrt{3}\cos x$ is $1+\sqrt{3}$ , since $\sin x\le1$ and $\sqrt{3}\cos x\le\sqrt{3}$ . Use (b) to explain why the student is wrong. Find the largest value and the smallest positive $x$ where it occurs.

Stuck? Peek at a hint

Expand $R\sin(x+\alpha)$ with the compound angle formula and match the coefficients of $\sin x$ and $\cos x$ .

Boss Level

Optional challenge

Telescoping Cosines

Let $P=\cos20^\circ\cos40^\circ\cos80^\circ$ .

a)
Show that $8\sin20^\circ\cdot P=\sin160^\circ$ .
b)
Find the exact value of $P$ .
c)
Find the exact value of $\cos\dfrac{\pi}{7}\cos\dfrac{2\pi}{7}\cos\dfrac{4\pi}{7}$ .

Stuck? Peek at a hint

Use $2\sin\theta\cos\theta=\sin 2\theta$ again and again. Then compare $\sin160^\circ$ with $\sin20^\circ$ .

Answer key

Final answers only. Try first, then check.

Core Skills

a) $\tan x$
b) $1$
c) $\cos x$

a) $\sin\theta=-\dfrac{24}{25}$
b) $\tan\theta=\dfrac{24}{7}$ , $\csc\theta=-\dfrac{25}{24}$
c) $\sin^2x$

a) $\dfrac{13}{85}$
b) $-\dfrac{36}{85}$
c) $2+\sqrt{3}$

a) $-\dfrac{4\sqrt{5}}{9}$
b) $\cos 2A=\dfrac{1}{9}$ , $\tan 2A=-4\sqrt{5}$
c) $\cos\dfrac{\pi}{4}=\dfrac{\sqrt{2}}{2}$ ; $\tan 30^\circ=\dfrac{\sqrt{3}}{3}$

a) $x=0,\ \dfrac{\pi}{3},\ \dfrac{5\pi}{3},\ 2\pi$
b) $x=\dfrac{\pi}{6},\ \dfrac{\pi}{2},\ \dfrac{5\pi}{6},\ \dfrac{3\pi}{2}$
c) $x=\dfrac{\pi}{6},\ \dfrac{5\pi}{6}$

Real World

a) $\tan\theta=\dfrac{\frac{8}{x}-\frac{3}{x}}{1+\frac{8}{x}\cdot\frac{3}{x}}=\dfrac{5x}{x^2+24}$
b) $x=4$ m or $x=6$ m; $\theta\approx26.6^\circ$ at both
c) Nowhere: $\tan\theta=1$ gives $x^2-5x+24=0$ , with discriminant $-71<0$ . The mural never fills $45^\circ$ from eye level.

a) $6\sin\theta+6\cos\theta=8$ , so $(\sin\theta+\cos\theta)^2=\frac{16}{9}$ , $1+\sin 2\theta=\frac{16}{9}$ and $\sin 2\theta=\frac{7}{9}$
b) $\theta\approx25.5^\circ$ : height $\approx2.59$ m; $\theta\approx64.5^\circ$ : height $\approx5.41$ m
c) No: $25.5^\circ$ and $64.5^\circ$ are both outside $[70^\circ,80^\circ]$ . At $75^\circ$ : $3\sqrt{6}\approx7.35$ m.

a) $d(\theta)=\dfrac{400\sin 2\theta}{9.8}$ ; $\theta=45^\circ$ ; $40.8$ m
b) $\theta\approx23.7^\circ$ or $\theta\approx66.3^\circ$
c) Only $23.7^\circ$ ( $h\approx3.3$ m). At $66.3^\circ$ , $h\approx17.1$ m: the ball hits the roof.

Think It Through

a) LS $=-1$ , RS $=1$ : the claim is not an identity.
b) $\left[\dfrac{\pi}{4},\dfrac{5\pi}{4}\right]$
c) The student started from the claim and squared both sides; squaring can turn a false equation ( $-1=1$ ) into a true one. It proves $(\sin x-\cos x)^2=1-\sin 2x$ , i.e. $|\sin x-\cos x|=\sqrt{1-\sin 2x}$ .

a) $a=\dfrac{1}{2}$ , $b=-\dfrac{1}{2}$
b) $R=2$ , $\alpha=\dfrac{\pi}{3}$
c) The two terms never peak together ( $\sin x=1$ forces $\cos x=0$ ). Largest value $2$ , at $x=\dfrac{\pi}{6}$ .

Boss Level

Boss

a) $8\sin20^\circ\cos20^\circ\cos40^\circ\cos80^\circ=4\sin40^\circ\cos40^\circ\cos80^\circ=2\sin80^\circ\cos80^\circ=\sin160^\circ$
b) $P=\dfrac{1}{8}$
c) $-\dfrac{1}{8}$

Free cheat sheet

Trigonometric Identities Cheat Sheet

The whole unit on one page: every rule, a worked example for each idea, and the traps that cost marks.

Unit Summary

One printable page with every rule.

↓ Unit Summary PDF

Build your own

The same page with blanks: fill it in from memory, then check.

↓ Build-your-own PDF

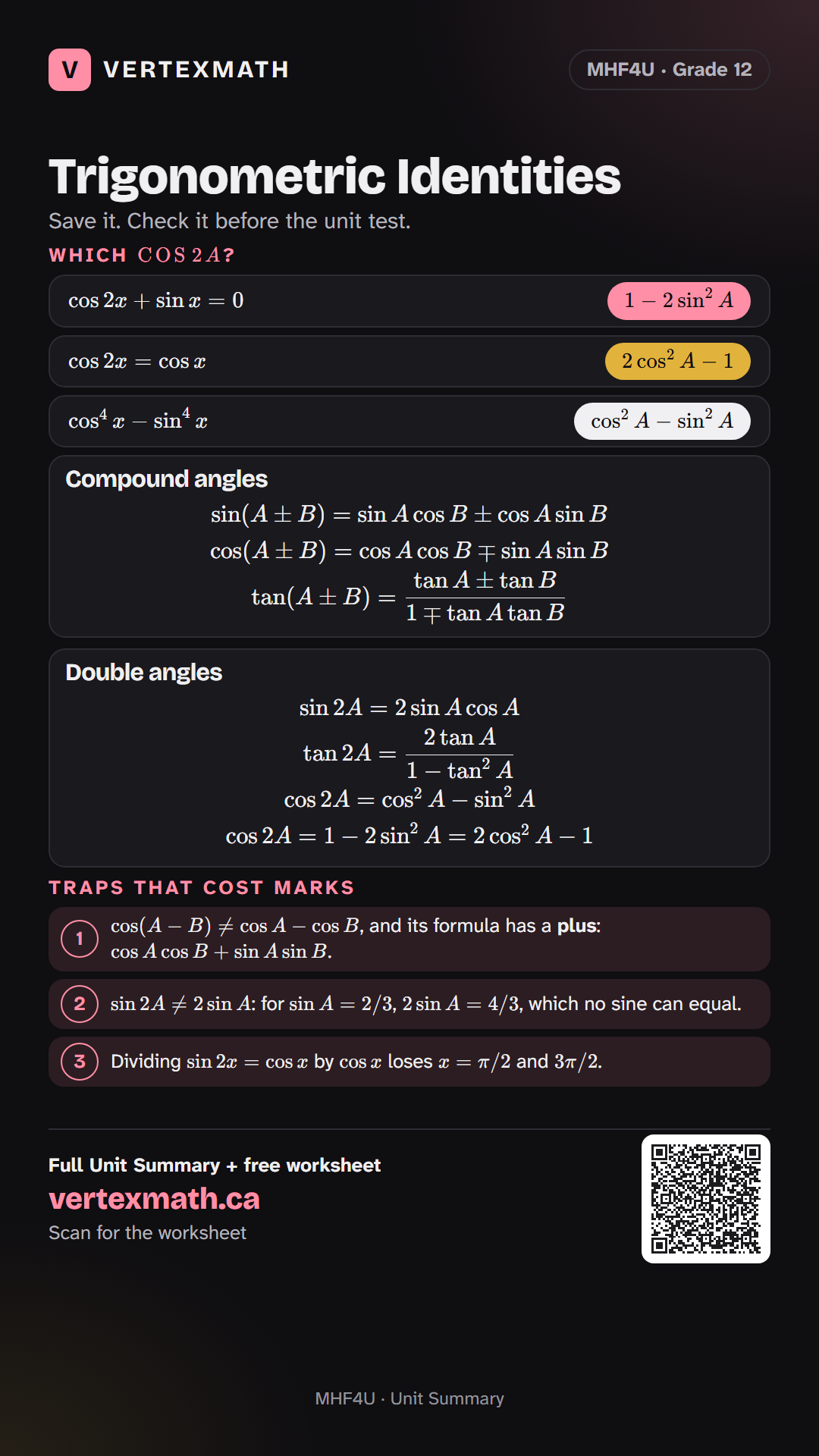

Phone card

The essentials on one screen. Save it to your photos.

↓ Phone card (image)

Most testedGiven $\sin A=3/5$ with $A$ in Quadrant II, find $\sin2A$ and $\cos2A$ . (card 4)

1Reciprocal, quotient, cofunction

$\csc x=\dfrac1{\sin x}\quad\sec x=\dfrac1{\cos x}\quad\cot x=\dfrac{\cos x}{\sin x}$

$\sin(\pi/2-x)=\cos x$

$\tan(\pi/2-x)=\cot x$

Trap $\sec$ goes with $\cos$ , $\csc$ with $\sin$ : $\sec x/\csc x=\sin x/\cos x=\tan x$ .

2Pythagorean identities

$\sin^2x+\cos^2x=1\qquad1+\tan^2x=\sec^2x$

UseA square root gives $\pm$ : the quadrant picks the sign.

Example $\cos\theta=-7/25$ in QIII: $\sin\theta=-\sqrt{1-49/625}=-24/25$ .

Trap $\sqrt{1-\cos^2\theta}=|\sin\theta|$ , not $1-\cos\theta$ .

3Compound angles

$\sin(A\pm B)=\sin A\cos B\pm\cos A\sin B$

$\cos(A\pm B)=\cos A\cos B\mp\sin A\sin B$

$\tan(A\pm B)=\dfrac{\tan A\pm\tan B}{1\mp\tan A\tan B}$

Example $\cos75^\circ=\cos(45^\circ+30^\circ)=(\sqrt6-\sqrt2)/4$ .

Trap $\cos(A-B)\ne\cos A-\cos B$ , and its formula has a plus: $\cos A\cos B+\sin A\sin B$ .

4Double angles

$\sin2A=2\sin A\cos A$

$\tan2A=\dfrac{2\tan A}{1-\tan^2A}$

$\cos2A=\cos^2A-\sin^2A$

$\cos2A=1-2\sin^2A=2\cos^2A-1$

Example $\sin A=3/5$ in QII: $\cos A=-4/5$ , $\sin2A=-24/25$ , $\cos2A=7/25$ .

Trap $\sin2A\ne2\sin A$ : for $\sin A=2/3$ , $2\sin A=4/3$ , which no sine can equal.

5Proving identities

$\dfrac{\sin2x}{1+\cos2x}=\dfrac{2\sin x\cos x}{2\cos^2x}=\tan x$

UseWork on one side at a time. Rewrite in $\sin$ and $\cos$ , combine fractions, factor, use a Pythagorean swap.

TrapSquaring both sides or moving terms across assumes what you are proving: that is not a proof.

6Solving with identities

UseReduce to one function and one angle, factor, then solve each factor. Never divide by $\cos x$ : factor it out.

Example $\sin2x=\cos x$ : $\cos x(2\sin x-1)=0$ , so $x=\pi/6,\ \pi/2,\ 5\pi/6,\ 3\pi/2$ .

TrapDividing $\sin2x=\cos x$ by $\cos x$ loses $x=\pi/2$ and $3\pi/2$ .

Which $\cos2A$ ?

Only

\sin

elsewhere

1-2\sin^2A

Only

\cos

elsewhere

2\cos^2A-1

Both, or a difference of squares

\cos^2A-\sin^2A

↓ Worksheet PDF ↓ Answer key PDF
