VertexMath · MPM2D · Free worksheet

Quadratic Functions in Vertex Form Review

Try each problem first. You don’t need to finish everything.

Core path ~55 min Full sheet ~1 h 50 min

Recommended: K1–K5, then one A and one T problem

K = Knowledge & Understanding · A = Application · T = Thinking · Boss = Challenge

vertexmath.ca Hints, answers & more worksheets

Quick reference

Vertex form $y=a(x-h)^2+k$ : the vertex is $(h,k)$ and the axis of symmetry is $x=h$ . In $(x+3)^2$ , $h=-3$ ; the $k$ keeps its sign.
Parameter $a$ : $|a|>1$ stretches the parabola (narrower), $0<|a|<1$ compresses it (wider), and $a<0$ reflects it in the $x$ -axis (opens down, maximum).
Square first, then multiply: for $y=3x^2$ at $x=2$ , $y=3(2)^2=12$ , not $(3\cdot 2)^2=36$ .
Finding $a$ : substitute the vertex for $h$ and $k$ , a second point for $x$ and $y$ , then solve. Remember to square $(x-h)$ .
Completing the square: factor $a$ out of the $x^2$ and $x$ terms only. Whatever you add inside the bracket is multiplied by $a$ , so subtract $a$ times it outside.

Show your work on separate paper. Show your work in the dot-grid space.

Core Skills (K)

Stretches & Reflections · Translations · Vertex & a Point · Completing the Square · Three Forms

K1 The Role of $a$

a)
Complete the table of values for $y=3x^2$ .

$x$ $-2$ $-1$ $0$ $1$ $2$
$y$
b)
The parabola $y=ax^2$ is graphed below. Determine $a$ . Each grid square is 1 unit.
c)
Order from narrowest to widest: $y=-4x^2$ , $y=0.5x^2$ , $y=2x^2$ , $y=-0.25x^2$ .

$x$	$-2$	$-1$	$0$	$1$	$2$
$y$

Stuck? Peek at a hint

Square $x$ first, then multiply by $a$ . For (b), substitute a point on the curve other than the vertex into $y=ax^2$ .

K2 Reading the Transformations

a)
State the vertex and the axis of symmetry of $y=(x+3)^2-4$ .
b)
For $y=-2(x-5)^2+1$ , state the vertex, the direction of opening and the $y$ -intercept.
c)
The parabola $y=x^2$ is stretched vertically by a factor of $3$ , then translated $4$ units left and $2$ units down. Write its equation.

Stuck? Peek at a hint

Write the bracket as $(x-h)$ : $(x+3)$ is $(x-(-3))$ . The $y$ -intercept is the value of $y$ when $x=0$ .

K3 Vertex and One Point

Determine the equation of each parabola in vertex form.

a)
Vertex $(2,3)$ , passing through $(4,11)$ .
b)
The parabola graphed below. Each grid square is 1 unit.
c)
Vertex $(-4,0)$ and $y$ -intercept $8$ .

Stuck? Peek at a hint

Substitute the vertex for $h$ and $k$ and the other point for $x$ and $y$ , then solve for $a$ .

K4 Completing the Square

Write each relation in vertex form by completing the square. Then state the vertex.

a)
$y=x^2+8x+11$
b)
$y=3x^2-18x+25$
c)
$y=-2x^2-12x-13$

Stuck? Peek at a hint

Factor $a$ out of the $x^2$ and $x$ terms only. Inside the bracket, add and subtract the square of half the coefficient of $x$ .

K5 Three Forms, One Parabola

a)
Factor $y=x^2-2x-15$ and state its zeros.
b)
Use the zeros to determine the vertex of $y=x^2-2x-15$ . Then write the relation in vertex form.
c)
Write $y=2(x-3)^2-8$ in standard form and in factored form.

Stuck? Peek at a hint

For (a), find two numbers with product $-15$ and sum $-2$ . The axis of symmetry is halfway between the zeros.

Real World (A)

Quadratic Models · Choosing the Best Form

A1 Gym Ceiling

In a school gym, a volleyball is bumped from a height of $2$ m. Its height, in metres, after $t$ seconds is $h(t)=-5(t-1)^2+7$ .

a)
State the maximum height of the ball and when it occurs.
b)
A teammate's hands are $2$ m above the floor. When does the ball reach them on the way down?
c)
A harder bump from the same height is modelled by $g(t)=-5(t-1.2)^2+9.2$ . The gym ceiling is $9$ m high. State the maximum height the model predicts, then say what really happens to the ball.

Stuck? Peek at a hint

Read the maximum from the vertex. The parabola is symmetric about $t=1$ , and the ball starts at $2$ m when $t=0$ .

A2 Ski Hill Day Passes

A ski hill near Collingwood finds that its daily revenue from day passes is greatest, $14 400, at a price of $60 per pass. At a price of $40, the daily revenue is $12 800.

a)
Write a model $R(p)$ in vertex form for the daily revenue, in dollars, at a price of $p$ dollars per pass.
b)
Use your model to predict the daily revenue at $75 per pass.
c)
Use your model to predict the daily revenue at $130 per pass. What does the result mean for the ski hill?

Stuck? Peek at a hint

The vertex is $(60,\,14\,400)$ . Substitute the point $(40,\,12\,800)$ to find $a$ .

A3 Parade Arch

A parabolic arch frames the entrance to a fairground in London, Ontario. Its height, in metres, is $h(x)=-0.5x^2+6x-10$ , where $x$ is the horizontal distance, in metres, from a lamp post.

a)
Write $h(x)$ in vertex form. State the maximum height of the arch and how far from the lamp post it occurs.
b)
Write $h(x)$ in factored form. How wide is the arch at ground level?
c)
A parade float has a flat top. It is $4.4$ m wide and $6$ m tall, and it drives through the centre of the arch. Does it fit?

Stuck? Peek at a hint

For vertex form, factor $-0.5$ out of the $x^2$ and $x$ terms and complete the square. For factored form, factor $-0.5$ out of all three terms.

Think It Through (T)

Error Analysis · Building Parabolas · Counterexample

T1 Spot the Flaw

A student completes the square for $y=2x^2+12x+5$ :
" $y=2(x^2+6x)+5=2(x^2+6x+9)+5-9=2(x+3)^2-4$ . The minimum value is $-4$ , at $x=-3$ ."

a)
Evaluate the original relation at $x=-3$ . What does the result tell you about the student's answer?
b)
Identify the error and write the correct vertex form.
c)
Without completing the square again, write $y=2x^2+12x+20$ in vertex form. Explain your reasoning.

Stuck? Peek at a hint

In (a), substitute $x=-3$ into $y=2x^2+12x+5$ , not into the student's answer.

T2 Build It Backwards

Use vertex form $y=a(x-h)^2+k$ in each part.

a)
Write an equation of a parabola with vertex $(-2,5)$ that opens down and is narrower than $y=x^2$ . Many answers are possible.
b)
A parabola has axis of symmetry $x=3$ and passes through $(1,0)$ and $(0,-10)$ . Determine its equation.
c)
A student claims: "Every parabola that opens down crosses the $x$ -axis." Give a counterexample. Then state the condition on $k$ for $y=a(x-h)^2+k$ , with $a<0$ , to have two zeros.

Stuck? Peek at a hint

In (b), the axis gives $h$ ; substitute each point to get two equations in $a$ and $k$ .

Boss Level

Optional challenge

Closest Point on a Line

The point $P(2,7)$ lies off the line $y=2x$ . Every point on the line has the form $Q(x,\,2x)$ .

a)
Write $PQ^2$ as a quadratic in $x$ , in standard form.
b)
Complete the square to determine the point $Q$ closest to $P$ , and the shortest distance from $P$ to the line.
c)
The point on the line straight across from $P$ is $(3.5,7)$ . Determine its distance from $P$ . Then show that $PQ$ is perpendicular to the line.

Stuck? Peek at a hint

Use the distance formula with $Q(x,\,2x)$ and keep $PQ^2$ without the root: the smallest $PQ^2$ gives the smallest $PQ$ .

Answer key

Final answers only. Try first, then check.

Core Skills

a) $12,\ 3,\ 0,\ 3,\ 12$
b) $a=-\frac{1}{2}$
c) $y=-4x^2$ , $y=2x^2$ , $y=0.5x^2$ , $y=-0.25x^2$

a) Vertex $(-3,-4)$ ; axis $x=-3$
b) Vertex $(5,1)$ ; opens down; $y$ -intercept $-49$
c) $y=3(x+4)^2-2$

a) $y=2(x-2)^2+3$
b) $y=-2(x+1)^2+4$
c) $y=\frac{1}{2}(x+4)^2$

a) $y=(x+4)^2-5$ ; vertex $(-4,-5)$
b) $y=3(x-3)^2-2$ ; vertex $(3,-2)$
c) $y=-2(x+3)^2+5$ ; vertex $(-3,5)$

a) $y=(x-5)(x+3)$ ; zeros $5$ and $-3$
b) Vertex $(1,-16)$ ; $y=(x-1)^2-16$
c) $y=2x^2-12x+10$ ; $y=2(x-1)(x-5)$

Real World

a) $7$ m, at $t=1$ s
b) $t=2$ s
c) The model predicts $9.2$ m at $t=1.2$ s, but the ball hits the $9$ m ceiling at $t=1$ s ( $g(1)=9$ ), so it never reaches $9.2$ m and the model stops applying after $t=1$ s.

a) $R(p)=-4(p-60)^2+14\,400$
b) $13 500
c) $R(130)=-5200$ : revenue can't be negative. The model reaches $0$ at $120, so above $120 no passes are sold, the revenue is $0, and the model no longer applies.

a) $h(x)=-0.5(x-6)^2+8$ ; $8$ m, at $6$ m from the lamp post
b) $h(x)=-0.5(x-2)(x-10)$ ; $8$ m wide
c) No: the arch is $8$ m high at its centre, but at the float's edges ( $x=3.8$ and $x=8.2$ ) it is only $5.58$ m high, lower than the $6$ m top.

Think It Through

a) $y=-13$ , not $-4$ : the axis $x=-3$ is right, but the minimum value is wrong.
b) Adding $9$ inside the bracket adds $2\cdot 9=18$ , so $18$ must be subtracted: $y=2(x+3)^2-13$ .
c) $y=2(x+3)^2+2$ : the constant is $15$ more, so the parabola is translated $15$ units up.

a) e.g. $y=-3(x+2)^2+5$ (any $a<-1$ )
b) $y=-2(x-3)^2+8$
c) e.g. $y=-(x-1)^2-2$ (maximum $-2$ , no zeros); two zeros when $k>0$

Boss Level

Boss

a) $PQ^2=5x^2-32x+53$
b) $PQ^2=5(x-3.2)^2+1.8$ ; $Q(3.2,\,6.4)$ ; shortest distance $\sqrt{1.8}\approx 1.34$
c) $1.5$ , longer than $1.34$ ; slope of $PQ=-\frac{1}{2}$ , and $-\frac{1}{2}\times 2=-1$

Free cheat sheet

Quadratics in Vertex Form Cheat Sheet

The whole unit on one page: every rule, a worked example for each idea, and the traps that cost marks.

Unit Summary

One printable page with every rule.

↓ Unit Summary PDF

Build your own

The same page with blanks: fill it in from memory, then check.

↓ Build-your-own PDF

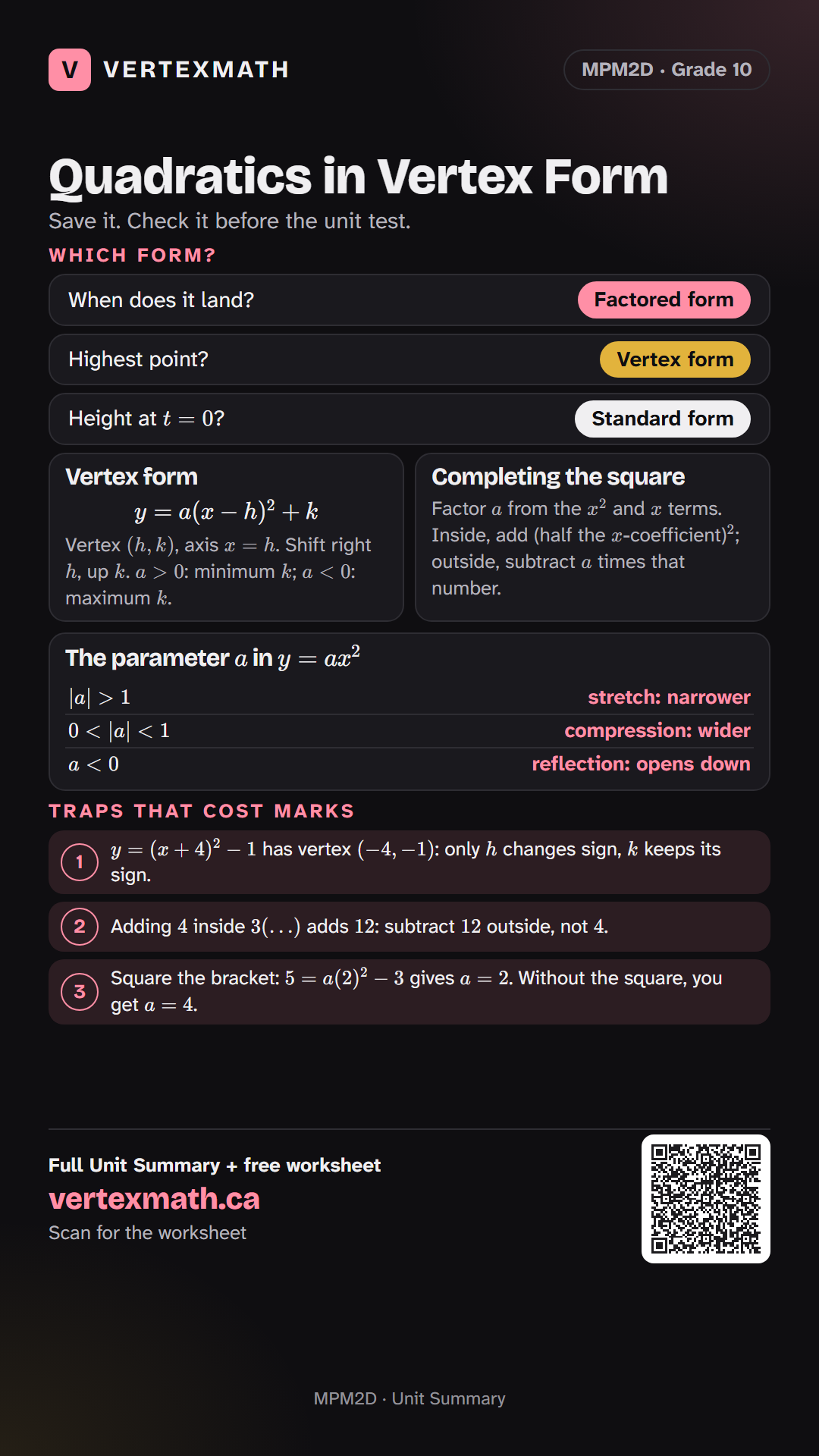

Phone card

The essentials on one screen. Save it to your photos.

↓ Phone card (image)

Most testedWrite $y=2x^2-12x+13$ in vertex form. State the vertex and the minimum value. (card 5)

1The parameter $a$ in $y=ax^2$

$\|a\|>1$	stretch: narrower
$0<\|a\|<1$	compression: wider
$a<0$	reflection: opens down

Trap $y=2x^2$ at $x=3$ : $2(3)^2=18$ , not $(2\cdot3)^2=36$ . Square first.

Trap $y=-0.5x^2$ is a vertical compression, wider than $y=x^2$ : the sign only flips it.

2Vertex form

$y=a(x-h)^2+k$

UseVertex $(h,k)$ , axis $x=h$ . Shift right $h$ , up $k$ . $a>0$ : minimum $k$ ; $a<0$ : maximum $k$ .

Example $y=-2(x+3)^2+5$ : vertex $(-3,5)$ , maximum $5$ ; $y$ -intercept $-2(9)+5=-13$ .

Trap $y=(x+4)^2-1$ has vertex $(-4,-1)$ : only $h$ changes sign, $k$ keeps its sign.

TrapKeep $a$ for the $y$ -intercept: $y=-3(x-2)^2+1$ gives $-3(4)+1=-11$ , not $5$ .

3Finding the equation

UsePut the vertex in for $h$ and $k$ , a second point in for $x$ and $y$ , then solve for $a$ .

ExampleVertex $(1,-3)$ , through $(3,5)$ : $5=a(3-1)^2-3$ , so $4a=8$ and $a=2$ .

TrapSquare the bracket: $5=a(2)^2-3$ gives $a=2$ . Without the square, you get $a=4$ .

4Models

UseThe maximum or minimum is $k$ , reached at $x=h$ . Equal heights sit the same distance either side of $x=h$ .

Example $h=-5(t-2)^2+21$ : maximum $21$ m at $t=2$ s; the height at $t=1$ equals the height at $t=3$ .

TrapFar from the vertex a revenue model can go negative. Use a model only where it makes sense.

5Completing the square

UseFactor $a$ from the $x^2$ and $x$ terms. Inside, add (half the $x$ -coefficient) $^2$ ; outside, subtract $a$ times that number.

Example $3x^2+12x+7=3(x^2+4x+4)+7-12=3(x+2)^2-5$ .

TrapAdding $4$ inside $3(\ldots)$ adds $12$ : subtract $12$ outside, not $4$ .

TrapFactoring out a negative flips the $x$ -term: $-2x^2+8x=-2(x^2-4x)$ .

6Three forms

$ax^2+bx+c$	$y$ -intercept $c$
$a(x-r)(x-s)$	zeros $r$ , $s$
$a(x-h)^2+k$	vertex $(h,k)$

Example $x^2-6x+5=(x-1)(x-5)$ : zeros $1$ and $5$ , axis $x=3$ , $y(3)=-4$ , so $(x-3)^2-4$ .

Trap $(x-3)^2=x^2-6x+9$ , not $x^2+9$ .

Which form?

You need the zeros Factored form

You need the max or min Vertex form

You need the starting value Standard form
